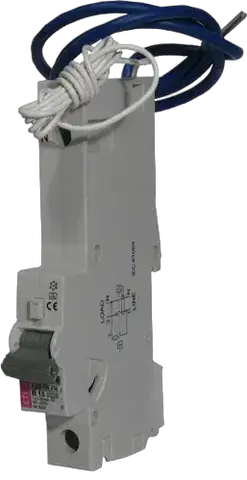

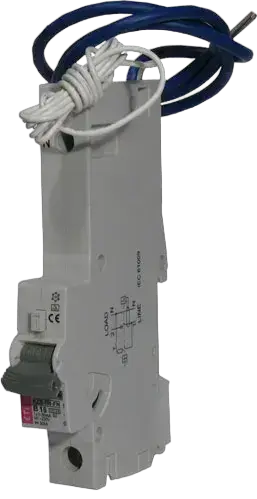

KZS-1M-FN AC C20/0.1 Zašt.dif.sklopka s nadstr.zaš.

ETI kod:: 002175535
Funkcija:: Zaštitne sklopke na diferencijalnu struju sa nadstrujnom zaštitom
Nazivni AC napon:: 240 V
Grupa kataloga :: KZS 1M FN
Signalizacija tipa greške:: ne
Primjena:: IEC 61009
Nazivna uslovna struja kratkog spoja Inc:: 10 kA
Nazivna preostala radna struja IDn:: 0,1 A
Nazivna struja:: 20 A
Tip rezidualne struje:: AC
Nazivna diferencijalna struja:: 0,1 A
Karakteristika okidanja:: C
Broj polova:: 1+N
Nazivna prekidna moć:: 10 kA
Nazivni poprečni presek:: 1-25 mm²
Standardi:: IEC 61009

Pribor

Proizvod

Težina: 0,195 kg
Net width: 17,7 mm
Net height: 232,9 mm
Net depth: 74,44 mm
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895628644
Basic packaging weight: 0,2 kg
Basic Packaging Dimensions Height: 75 mm
Basic Packaging Dimensions Width: 138 mm
Basic Packaging Dimensions Depth: 30 mm
Basic packaging volume: 0,31 dm³

Transportno pakovanje

Transport packaging quantity: 42 pcs
EAN code for a transport packaging: 3838895628651
Transport packaging weight: 8,75 kg
Transport Packaging Dimensions Height: 0,25 m
Transport Packaging Dimensions Width: 0,235 m
Transport Packaging Dimensions Depth: 0,295 m
Transport packaging volume: 0,017 m³
Pallet quantity: 2.184 pcs
Customs tariff: 85362010

Leakage current type: AC
Voltage type: AC
With interlocking device: Da
Rated impulse withstand voltage Uimp: 4 kV
Degree of protection (IP): IP20
Release characteristic: C
Rated fault current: 0,1 A
Number of poles (total): 2
Disconnection characteristic: Undelayed
Frequency: Other
Rated short-circuit breaking capacity according to EN 61009: 10 kA
Number of protected poles: 1
Rated voltage: 230 V
Current limiting class: 3
Rated short-circuit breaking capacity according to IEC 60947-2: 10 kA
Rated current: 20 A
Rated short-circuit breaking capacity Icn according to EN 61009-1: 10 kA
Width in number of modular spacings: 1
Ambient temperature during operating(Min): 30 °C
Connectable conductor cross section solid-core(Min): 25 mm²
Connectable conductor cross section multi-wired(Min): 1 mm²
Connectable conductor cross section solid-core(Max): 25 mm²
Connectable conductor cross section multi-wired(Max): 25 mm²
Ambient temperature during operating(Max): 30 °C

ETIM klasifikacija – verzija 9.0
