002173811

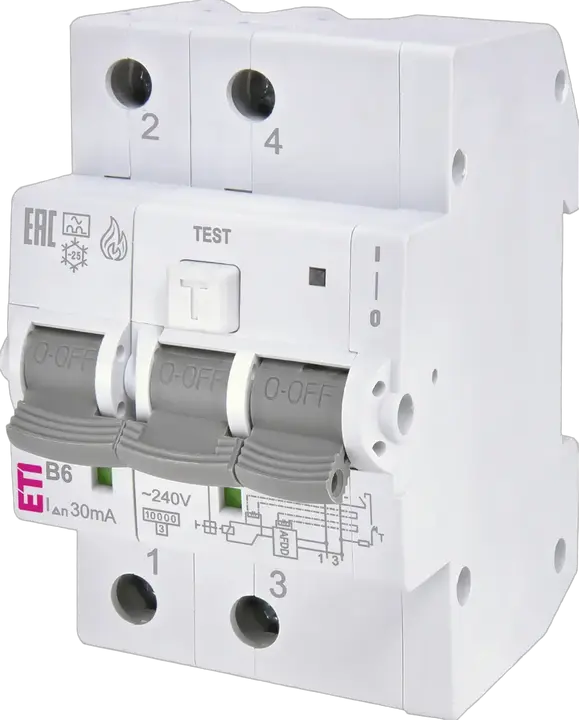

KZS-AFDD 3M2p A B6/0.03 Uređaj za det. strujnog luka

ETI kod:: 002173811
Funkcija:: Zaštitne sklopke na diferencijalnu struju sa nadstrujnom zaštitom
Zaštita od prenapona:: Yes
Nazivni AC napon:: 240 V
Grupa kataloga :: KZS 3M2p AFDD
Signalizacija tipa greške:: LED
Primjena:: IEC/EN 61009-1, IEC/EN 62606
Vrsta spajanja:: Univerzalan
Nazivna uslovna struja kratkog spoja Inc:: 10 kA
Nazivna preostala radna struja IDn:: 0,03 A
Nazivna struja:: 6 A
Tip rezidualne struje:: A
Nazivna diferencijalna struja:: 0,03 A
Karakteristika okidanja:: B
Broj polova:: 2
Nazivna prekidna moć:: 10 kA
Nazivni poprečni presek:: 1-25 mm²
Standardi:: IEC/EN 61009-1, IEC/EN 62606

Proizvod

Težina: 377 g
Net width: 53,7 mm
Net height: 88,7 mm
Net depth: 73,31 mm
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895868880
Basic packaging weight: 0,377 kg
Basic Packaging Dimensions Height: 0,08 m
Basic Packaging Dimensions Width: 0,095 m
Basic Packaging Dimensions Depth: 0,056 m
Basic packaging volume: 0 m³

Transportno pakovanje

Transport packaging quantity: 33 pcs
EAN code for a transport packaging: 3838895868903
Transport packaging weight: 12,791 kg
Transport Packaging Dimensions Height: 0,25 m
Transport Packaging Dimensions Width: 0,235 m
Transport Packaging Dimensions Depth: 0,295 m
Transport packaging volume: 0,017 m³
Pallet quantity: 1.716 pcs
Customs tariff: 85362010

Built-in depth: 69 mm
Leakage current type: A
Rated impulse withstand voltage Uimp: 4 kV
Degree of protection (IP): IP20
Release characteristic: B
Rated fault current: 0,03 A
Number of poles (total): 2
Frequency: 50 Hz
Rated short-circuit breaking capacity according to EN 61009: 10 kA
Number of protected poles: 2
Rated voltage: 230 V
Current limiting class: 3
Rated current: 6 A
Width in number of modular spacings: 3
Ambient temperature during operating(Min): -25 °C
Connectable conductor cross section solid-core(Min): 1 mm²
Connectable conductor cross section multi-wired(Min): 1 mm²
Connectable conductor cross section solid-core(Max): 25 mm²
Connectable conductor cross section multi-wired(Max): 25 mm²
Ambient temperature during operating(Max): 40 °C

ETIM klasifikacija – verzija 9.0
