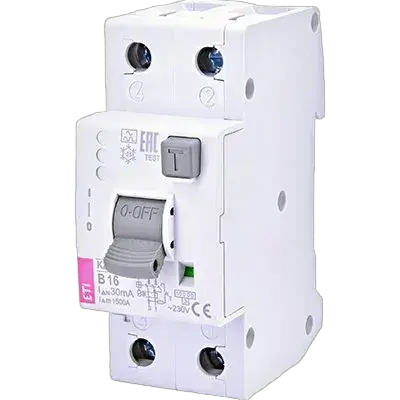

KZS-2M2p A C16/0.03 Zašt.dif.sklopka s nadstr.zaš.

ETI kod:: 002172525
Funkcija:: Zaštitne sklopke na diferencijalnu struju sa nadstrujnom zaštitom
Nazivni AC napon:: 230 V
Dubina:: 69 mm
Grupa kataloga :: KZS-2M2p Residual current circuit breakers with o
Signalizacija tipa greške:: Ne
Primjena:: IEC/EN 61009
IP zaštita:: IP20
Nazivna uslovna struja kratkog spoja Inc:: 10 kA
Nazivna preostala radna struja IDn:: 0,03 A
Nazivna struja:: 16 A
Tip rezidualne struje:: A
Nazivna diferencijalna struja:: 0,03 A
Karakteristika okidanja:: C
Broj polova:: 2
Nazivna prekidna moć:: 10 kA
Nazivna frekvencija:: 50/60 Hz
Nazivni poprečni presek:: 1-25 mm²
Standardi:: IEC/EN 61009

Pribor

Proizvod

Težina: 225 g
Net width: 36 mm
Net height: 88,7 mm
Net depth: 74,18 mm
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895625445
Basic packaging weight: 0,241 kg
Basic Packaging Dimensions Height: 0,075 m
Basic Packaging Dimensions Width: 0,09 m
Basic Packaging Dimensions Depth: 0,038 m
Basic packaging volume: 0 m³

Transportno pakovanje

Transport packaging quantity: 54 pcs
EAN code for a transport packaging: 3838895625452
Transport packaging weight: 13,364 kg
Transport Packaging Dimensions Height: 0,25 m
Transport Packaging Dimensions Width: 0,235 m
Transport Packaging Dimensions Depth: 0,295 m
Transport packaging volume: 0,017 m³
Pallet quantity: 2.808 pcs
Customs tariff: 85362010

Built-in depth: 69 mm
Leakage current type: A
Degree of protection (IP): IP20
Release characteristic: C
Rated fault current: 0,03 A
Number of poles (total): 2
Frequency: 50/60 Hz
Rated short-circuit breaking capacity according to EN 61009: 10 kA
Concurrently switching neutral conductor: Da
Number of protected poles: 2
Rated voltage: 230 V
Current limiting class: 3
Rated current: 16 A
Width in number of modular spacings: 2
Connectable conductor cross section multi-wired(Min): 1 mm²
Connectable conductor cross section multi-wired(Max): 25 mm²
