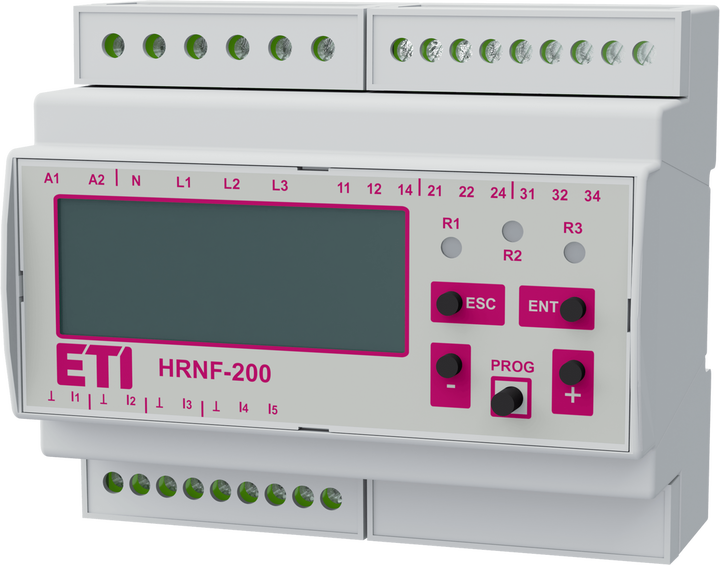

HRNF-200 Kontrolni rele

ETI kod:: 002472250
Funkcija:: Monitoring and Control relays
Napon napajanja:: 110-230 V
Tip upravljanja:: Simetrija faze, Ispad faze, Frekvencija, Ispad faze i neutralnog vodiča
Broj kontakata:: 3
Tip napona :: AC/DC
Maks. opterećenje AC1:: 1.250 VA
Nazivna struja:: 5 A
Tip kontakta:: 1xCO
Broj ulaza:: 5
DC napon napajanja Uc:: 24-48 V

Proizvod

Težina: 0,255 kg
Net width: 106 mm
Net height: 92 mm
Net depth: 62 mm
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400181466
Basic packaging weight: 0,34 kg
Basic Packaging Dimensions Height: 100 mm
Basic Packaging Dimensions Width: 120 mm
Basic Packaging Dimensions Depth: 130 mm
Basic packaging volume: 1,56 dm³

Transportno pakovanje

Transport packaging quantity: 36 pcs
EAN code for a transport packaging: 3838400181459
Transport packaging weight: 12,6 kg
Transport Packaging Dimensions Height: 400 mm
Transport Packaging Dimensions Width: 380 mm
Transport Packaging Dimensions Depth: 600 mm
Transport packaging volume: 91,2 dm³
Pallet quantity: 576 pcs
Customs tariff: 85364900

Single-phase under voltage possible: Da
External power supply required: Da
Width: 106 mm
Three-phase under voltage possible: Da
Single-phase hysteresis possible: Da
Voltage type (operating voltage): AC/DC
Voltage type (supply voltage): AC/DC
Three-phase over voltage possible: Da
Type of voltage measuring range: AC
Rated switch current: 5 A
Single-phase over voltage possible: Da
Depth: 91 mm
Three-phase hysteresis possible: Da
Type of electric connection: Screw connection
Number of contacts as change-over contact: 3
Height: 62 mm
Operating voltage AC 50 Hz(Min): 110 V
Operating voltage AC 60 Hz(Min): 110 V
Supply voltage AC 60 Hz(Min): 110 V
Voltage measuring range 2(Min): 400 V
Supply voltage DC(Min): 24 V
Operating voltage DC(Min): 24 V
Voltage measuring range 1(Min): 230 V
Supply voltage AC 50 Hz(Min): 110 V
Voltage measuring range 1(Max): 230 V
Supply voltage AC 50 Hz(Max): 230 V
Operating voltage AC 60 Hz(Max): 230 V
Supply voltage DC(Max): 48 V
Operating voltage AC 50 Hz(Max): 230 V
Voltage measuring range 2(Max): 400 V
Supply voltage AC 60 Hz(Max): 230 V
Operating voltage DC(Max): 48 V

ETIM klasifikacija – verzija 9.0

Softver je obezbijeđen kakav jeste, bez ikakvih garancija. Autor nije u obavezi da pruži podršku, uslugu, ispravke ili nadogradnje za besplatne softverske programe ili drajvere.

002472250 Kontrolni rele HRNF-200 EVE/ETIREL Control equipment Relays Relays Multifunction relay Multifunction relay Međunarodna Automatizacija, signalni i kontrolni uređaji Releji za nadzor Tip kontakta: 1xCO Broj NC kontakata: 0 Tip napona : AC/DC Broj kontakata: 3 Broj CO kontakata: 0 Tip upravljanja: Frekvencija, Ispad faze, Ispad faze i neutralnog vodiča, Simetrija faze, Umax, Umin Funkcija: Monitoring and Control relays Broj ulaza: 5 Maks. opterećenje AC1: 1250 VA Broj NO kontakata: 0 Napon napajanja: 110 V-230 V Nazivna struja: 5 A/5 A DC napon napajanja Uc: 24 V-48 V Kontrolni rele Funkcija: Monitoring and Control relays Napon napajanja: 110 V-230 V Tip upravljanja: Frekvencija, Ispad faze, Ispad faze i neutralnog vodiča, Simetrija faze, Umax, Umin Broj kontakata: 3 Tip napona : AC/DC Nazivna struja: 5 A/5 A Maks. opterećenje AC1: 1250 VA Tip kontakta: 1xCO Broj NC kontakata: 0 Broj CO kontakata: 0 Broj NO kontakata: 0 DC napon napajanja Uc: 24 V-48 V
