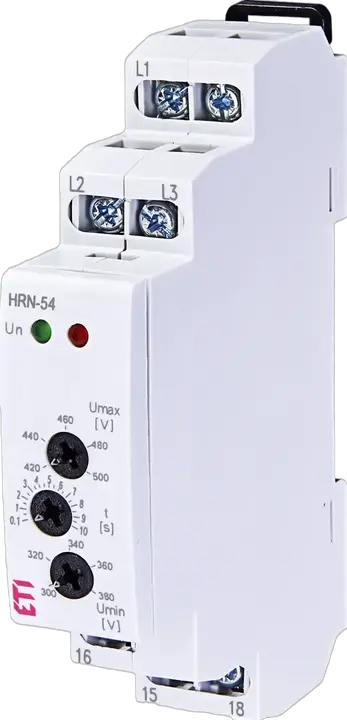

HRN-54 Kontrolni rele

ETI kod:: 002471416
Visina:: 90 mm
Širina:: 18 mm
Kategorija:: Relej za nadzili pod/nad napona, simetrije i ispada faze HRN-54, HRN-54N
Grupa kataloga :: Releji za kontrolu i merenje napona
Kataloška podgrupa:: Relej za nadzili nad/pod napona
Opis tipa:: Relej za nadzili pod/nad napona, simetrije i ispada faze HRN-54, HRN-54N
Funkcija:: Uređaji za nadzili i upravljanje
Napon napajanja:: 400 V
Tip upravljanja:: Redosled faza , Ispad faze
Broj kontakata:: 1
Tip napona :: AC
Maks. opterećenje AC1:: 2.500 VA
Nazivna struja:: 8 A
Tip kontakta:: 1xCO
Broj CO kontakata:: 1

Pribor

Proizvod

Težina: 0,07 kg
Net width: 17,5 mm
Net height: 91,3 mm
Net depth: 64,26 mm
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895452195
Basic packaging weight: 0,06 kg
Basic Packaging Dimensions Height: 70 mm
Basic Packaging Dimensions Width: 97 mm
Basic Packaging Dimensions Depth: 25 mm
Basic packaging volume: 0,17 dm³

Transportno pakovanje

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895452201
Transport packaging weight: 0,74 kg
Transport Packaging Dimensions Height: 102 mm
Transport Packaging Dimensions Width: 284 mm
Transport Packaging Dimensions Depth: 75 mm
Transport packaging volume: 2,173 dm³
Pallet quantity: 4.600 pcs
Customs tariff: 85364900

Single-phase under voltage possible: Da
Phase failure detection: Da
Width: 18 mm
Three-phase under voltage possible: Da
Single-phase hysteresis possible: Da
Max. permitted delay-on energization time: 10 s
Min. adjustable delay-on energization time: 0,1 s
Voltage type (operating voltage): AC
Max. permitted off-delay time: 10 s
Phase sequence monitoring: Da
Voltage type (supply voltage): AC
Min. adjustable off-delay time: 0,1 s
Function under voltage detection: Da
Three-phase over voltage possible: Da
Type of voltage measuring range: AC
Phase imbalance monitoring: Da
Rated switch current: 8 A
Single-phase over voltage possible: Da
Function over voltage detection: Da
Depth: 64 mm
Three-phase hysteresis possible: Da
Type of electric connection: Screw connection
Number of contacts as change-over contact: 1
Height: 90 mm
Operating voltage AC 50 Hz(Min): 400 V
Voltage measuring range(Min): 300 V
Operating voltage AC 60 Hz(Min): 400 V
Supply voltage AC 60 Hz(Min): 400 V
Voltage measuring range 2(Min): 300 V
Voltage measuring range 1(Min): 420 V
Supply voltage AC 50 Hz(Min): 400 V
Voltage measuring range 1(Max): 500 V
Supply voltage AC 50 Hz(Max): 400 V
Voltage measuring range(Max): 500 V
Operating voltage AC 60 Hz(Max): 400 V
Operating voltage AC 50 Hz(Max): 400 V
Voltage measuring range 2(Max): 380 V
Supply voltage AC 60 Hz(Max): 400 V

ETIM klasifikacija – verzija 9.0
