002440435

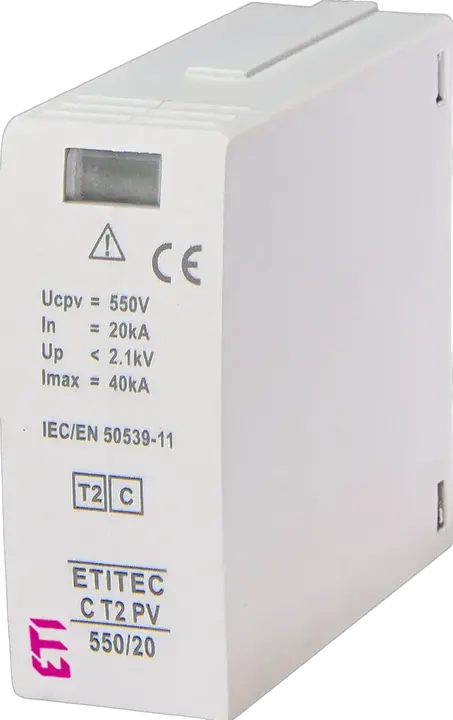

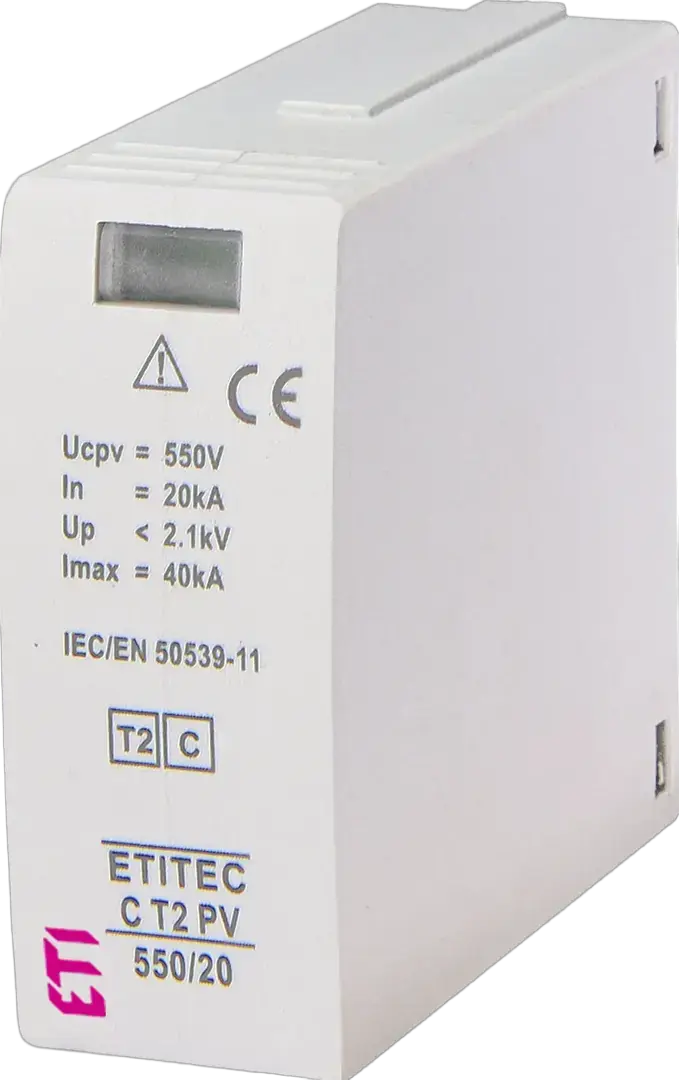

Slika *MOD.ETITEC C T2 PV 550/20

*MOD.ETITEC C T2 PV 550/20 Odvodnik prenapona

ETI kod:: 002440435
Funkcija:: SPD Module
Grupa kataloga :: ETITEC C PV
Instalacija/Ugradnja:: PV zaštita
IP zaštita:: IP20
Diferencijalna struja:: Yes
Primjenjena tehnologija:: MOV
Tip odvodnika prenapona:: T2
DC maks. trajni radni napon Uc:: 550 V
Za upotrebu sa:: ETITEC C T2 PV
Tip struje:: DC
In (8/20):: 20 kA

Proizvod

EAN code for a single product: 3838400166647
Težina: 0,058 kg
Stock unit of measure: pcs

Transportno pakovanje

Transport packaging quantity: 12 pcs
EAN code for a transport packaging: 3838895784586
Transport packaging weight: 0,064 kg
Transport Packaging Dimensions Height: 62 mm
Transport Packaging Dimensions Width: 47 mm
Transport Packaging Dimensions Depth: 219 mm
Transport packaging volume: 0,638 dm³
Pallet quantity: 15.120 pcs
Customs tariff: 85363090

Max. discharge surge current (8/20): 40 kA
Max. continuous voltage DC: 550 V
Degree of protection (IP): IP20
Mounting method: On basic element
Construction size: 1 modular spacing
Short-circuit breaking capacity (Isccr): 0,1 kA
Signalling at the device: Optical
Category type 2: Da
Nominal discharge surge current (8/20): 20 kA
System configuration DC: Da

ETIM klasifikacija – verzija 9.0
