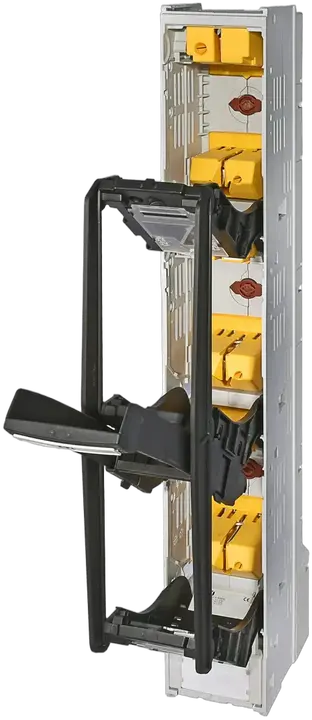

SL3 3P M12 800AC Kont.letva - osig.rast.sklopka

ETI kod:: 001690863
Pd:: 48 W
Prenaponska kategorija:: III
Standardi:: IEC 61943-1, IEC 60947-3
Primjena:: Sa NH 800V osiguračima za zaštitu kablova na 800V a.c. sistemski napon
Tip osigurača:: NH
Veličina:: NH3
Nazivna struja:: 315 A
Nazivni AC napon:: 800 V
Opis tipa:: NH

Pribor

Proizvod

Težina: 5,48 kg
Net width: 99 mm
Net height: 762 mm
Net depth: 202 mm
Stock unit of measure: pcs

Transportno pakovanje

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838895836902
Transport packaging weight: 5,98 kg
Transport Packaging Dimensions Height: 205 mm
Transport Packaging Dimensions Width: 764 mm
Transport Packaging Dimensions Depth: 100 mm
Transport packaging volume: 15,662 dm³
Pallet quantity: 30 pcs
Customs tariff: 85363090

Release indication: None
Distance between rail centre, 185 mm: Da
Max. rated operation voltage Ue AC: 800 V
Model: Fuse switch disconnector
Rated permanent current Iu: 630 A
Conditioned rated short-circuit current Iq: 50 kA
Type of electrical connection of main circuit: Screw connection
Number of poles: 3
Construction size fuse insert: NH3

ETIM klasifikacija – verzija 9.0
