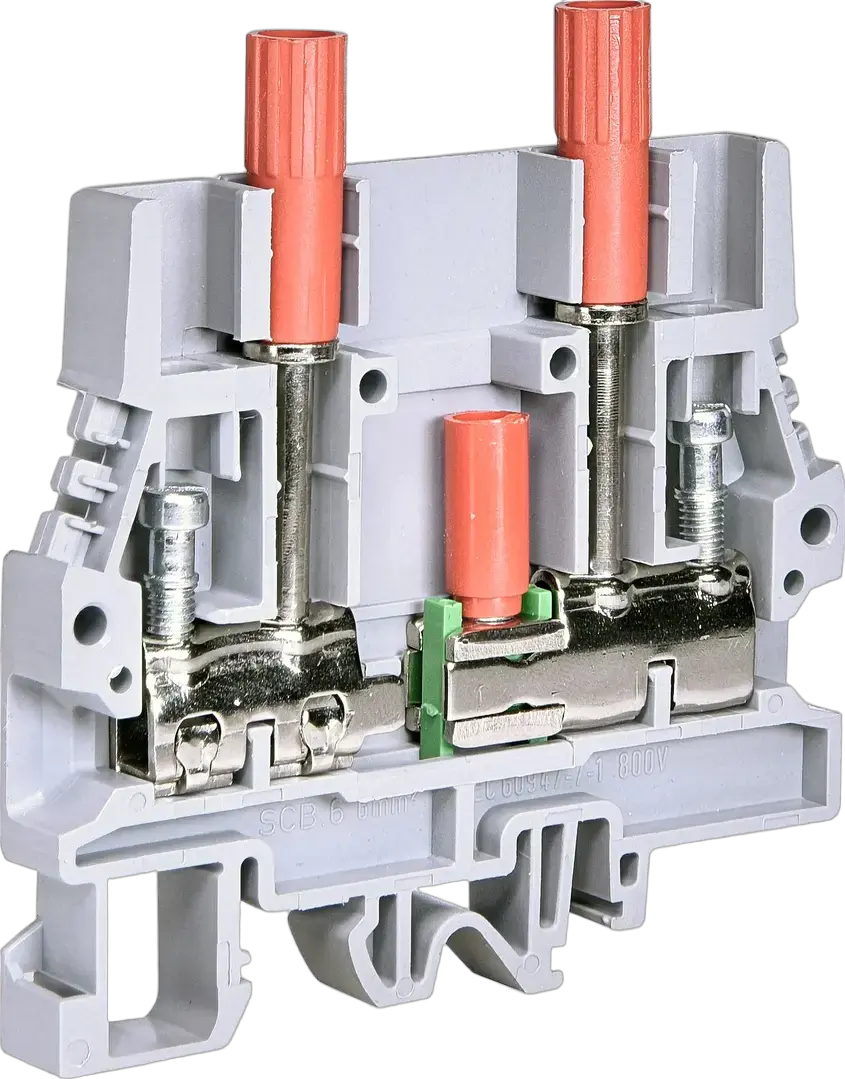

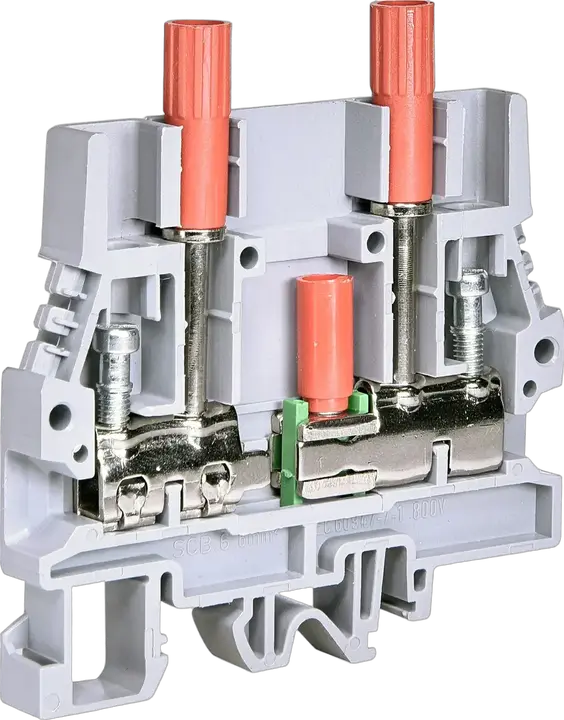

ESC-SCB.6/DD Redna stezaljka

ETI kod:: 003903221
Nazivni AC napon:: 800 V
Nazivni DC napon:: 800 V
Grupa kataloga :: SM Line-up terminali
Tip montaže:: Montaža na DIN šinu TH 35
Opis tipa:: SM Line-up terminali
Boja:: Siva
Nazivni poprečni presek:: 6 mm²
Nazivni impulsni napon Uimp:: 8 kV
Maksimalna struja sa nominalnim poprečnim presjekom:: 41 mm²
Priključci za provodnik:: 5-10 mm²
Unakrsna veza:: No
Potreban je krajnji/završni dio:: Yes
Funkcija:: Measuring terminals ES

Pribor

Proizvod

EAN code for a single product: 3838895861195
Težina: 0,036 kg
Net width: 8,2 mm
Net height: 69,5 mm
Net depth: 72,4 mm
Stock unit of measure: pcs

Transportno pakovanje

Transport packaging quantity: 80 pcs
EAN code for a transport packaging: 3838895830757
Transport packaging weight: 3,02 kg
Transport Packaging Dimensions Height: 75 mm
Transport Packaging Dimensions Width: 290 mm
Transport Packaging Dimensions Depth: 210 mm
Transport packaging volume: 4,568 dm³
Pallet quantity: 12.480 pcs
Customs tariff: 85369010

Type of cross disconnection: Sliding
Width: 8 mm
Material insulation body: Thermoplastic
Rated current In: 41 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Screw connection
Type of slitting: Sliding
Number of clamp positions per level: 2
Closing plate required: Da
Type of electrical connection 2: Screw connection
Rated voltage: 800 V
Colour: Grey
With integrated test socket: Da
Height: 76 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,5 mm²
Connectable conductor cross section multi-wired(Min): 0,5 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,5 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 10 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 10 mm²
Connectable conductor cross section multi-wired(Max): 10 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 6 mm²

ETIM klasifikacija – verzija 9.0
