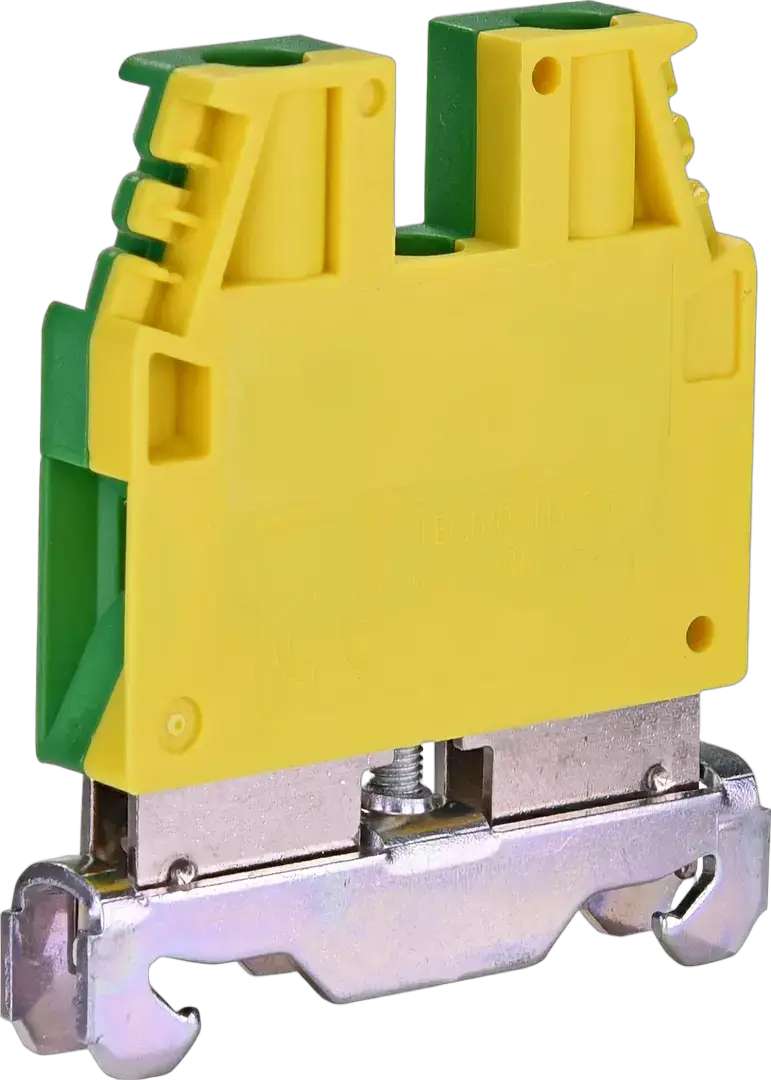

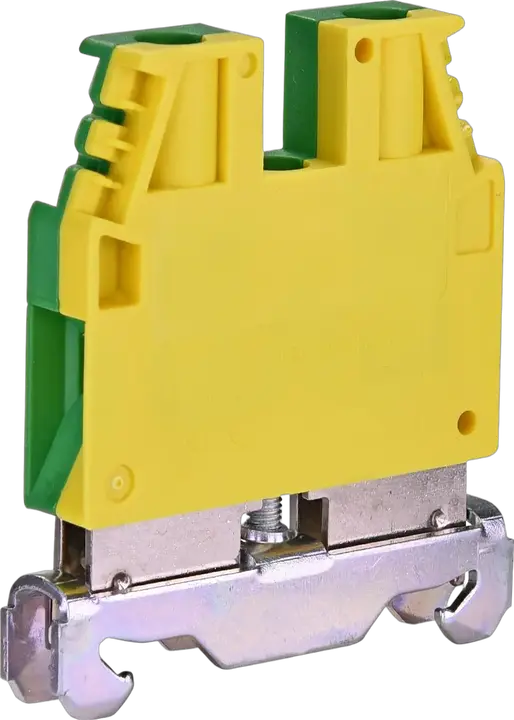

ESC-TEC.6/O Priključak uzemljenja

ETI kod:: 003903070
Grupa kataloga :: Priključni blokovi tipa ES vijaka
Tip montaže:: Montaža na DIN šinu TH 35
Opis tipa:: Priključni blokovi tipa ES vijaka
Nivo:: Jedan
Boja:: Žuta, Zelena
Nazivni poprečni presek:: 6 mm²
Nazivni impulsni napon Uimp:: 8 kV
Maksimalna struja sa nominalnim poprečnim presjekom:: 41 mm²
Priključci za provodnik:: 5-10 mm²
Unakrsna veza:: No
Potreban je krajnji/završni dio:: No

Pribor

Proizvod

EAN code for a single product: 3838895861294
Težina: 29,3 g
Net width: 8 mm
Net height: 47 mm
Net depth: 48,77 mm
Stock unit of measure: pcs

Transportno pakovanje

Transport packaging quantity: 45 pcs
EAN code for a transport packaging: 3838895788669
Transport packaging weight: 1,409 kg
Transport Packaging Dimensions Height: 150 mm
Transport Packaging Dimensions Width: 70 mm
Transport Packaging Dimensions Depth: 150 mm
Transport packaging volume: 1,575 dm³
Pallet quantity: 19.125 pcs
Customs tariff: 85369010

Width: 8 mm
Material insulation body: Thermoplastic
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2
Type of electrical connection 2: Screw connection
Colour: Green/yellow
Height: 52 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,5 mm²
Connectable conductor cross section multi-wired(Min): 0,5 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,5 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 10 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 10 mm²
Connectable conductor cross section multi-wired(Max): 10 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 6 mm²

ETIM klasifikacija – verzija 9.0
