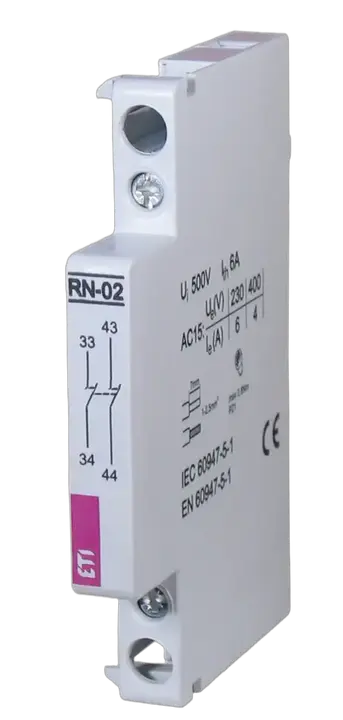

RN-02 Pomoćni kontakti

ETI kod:: 002464069
Za upotrebu sa:: Modular contactor RD, R…R, RD…R
Funkcija:: Auxiliary contactor block
Broj NC kontakata:: 2
Tip montaže:: DIN šina
Kategorija:: Modular Contactors
Grupa kataloga :: ETICON
Funkcionalni pribor:: Auxiliary contactor block for contactors RD, R…R, RD…R
I (AC1):: 6 A

Pribor

Proizvod

Težina: 30 g
Net width: 12,5 mm
Net height: 85 mm
Net depth: 64,5 mm
Stock unit of measure: pcs

Transportno pakovanje

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838895540960
Transport packaging weight: 0,03 kg
Transport packaging volume: 0,1 dm³
Pallet quantity: 18.000 pcs
Customs tariff: 85389099

Additional equipment possible: Da
Voltage type: AC
Number of contacts as normally closed contact: 2
Device fitting: Auxiliary switch/relay
Suitable for max. number of poles main contact unit (total): 4
Utilization category according to EN IEC 60947-4-1: AC-1
Rated switch current: 6 A
Rated voltage: 230 V
Suitable for max. current main contact unit: 63 A
Function: Auxiliary switch
Width in number of modular spacings: 0,5

ETIM klasifikacija – verzija 9.0
