002472001

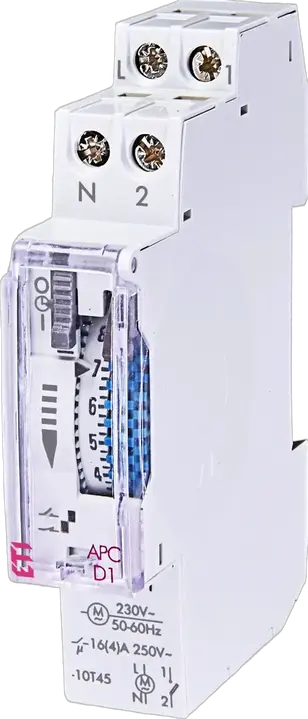

APC-D1 Vremenski relej

ETI kod:: 002472001
Visina:: 90 mm
Širina:: 17,5 mm
Kategorija:: Analogna elektromehanička vremenska sklopka APC-D1, APC-DR1
Grupa kataloga :: Vremenski relej (analogni)
Kataloška podgrupa:: Vremenska sklopka
Tip montaže:: Montaža na DIN šinu TH 35
IP zaštita:: IP20
Vremenski opseg:: 15 min - 24 hours
Opis tipa:: Analogna elektromehanička vremenska sklopka APC-D1, APC-DR1
Tip kontakta:: 1xNO
Tip napona :: AC
Broj kontakata:: 1
Funkcija:: Vremenski relej
Maks. opterećenje AC1:: 4.000 VA
Broj funkcija:: 1
Broj NO kontakata:: 1
Napon napajanja:: 230 V
Nazivna struja:: 16 A

Proizvod

Težina: 0,095 kg
Net width: 17,5 mm
Net height: 91,3 mm
Net depth: 64,12 mm
Stock unit of measure: pcs

Osnovno pakovanje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 5904722951464
Basic packaging weight: 0,086 kg
Basic Packaging Dimensions Height: 103 mm
Basic Packaging Dimensions Width: 22 mm
Basic Packaging Dimensions Depth: 73 mm
Basic packaging volume: 0,165 dm³

Transportno pakovanje

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895689744
Transport packaging weight: 0,98 kg
Transport Packaging Dimensions Height: 210 mm
Transport Packaging Dimensions Width: 150 mm
Transport Packaging Dimensions Depth: 160 mm
Transport packaging volume: 5,04 dm³
Pallet quantity: 1.500 pcs
Customs tariff: 85364900

Mains synchronous: Da
Width: 17,5 mm
Suitable for manual operation: Da
Number of channels: 1
Degree of protection (IP): IP20
Mounting method: DIN rail
Accuracy per day: 1 s
Voltage type (supply voltage): AC
24 h program: Da
Nominal switching current at 250 V AC: 16 A
Depth: 65 mm
Shortest switching time channel 1: 15 min
Potential free switch contact: Da
Height: 90 mm
Width in number of modular spacings: 1
Frequency supply voltage(Min): 50 Hz
Supply voltage(Min): 230 V
Frequency supply voltage(Max): 50 Hz
Supply voltage(Max): 230 V

ETIM klasifikacija – verzija 9.0
